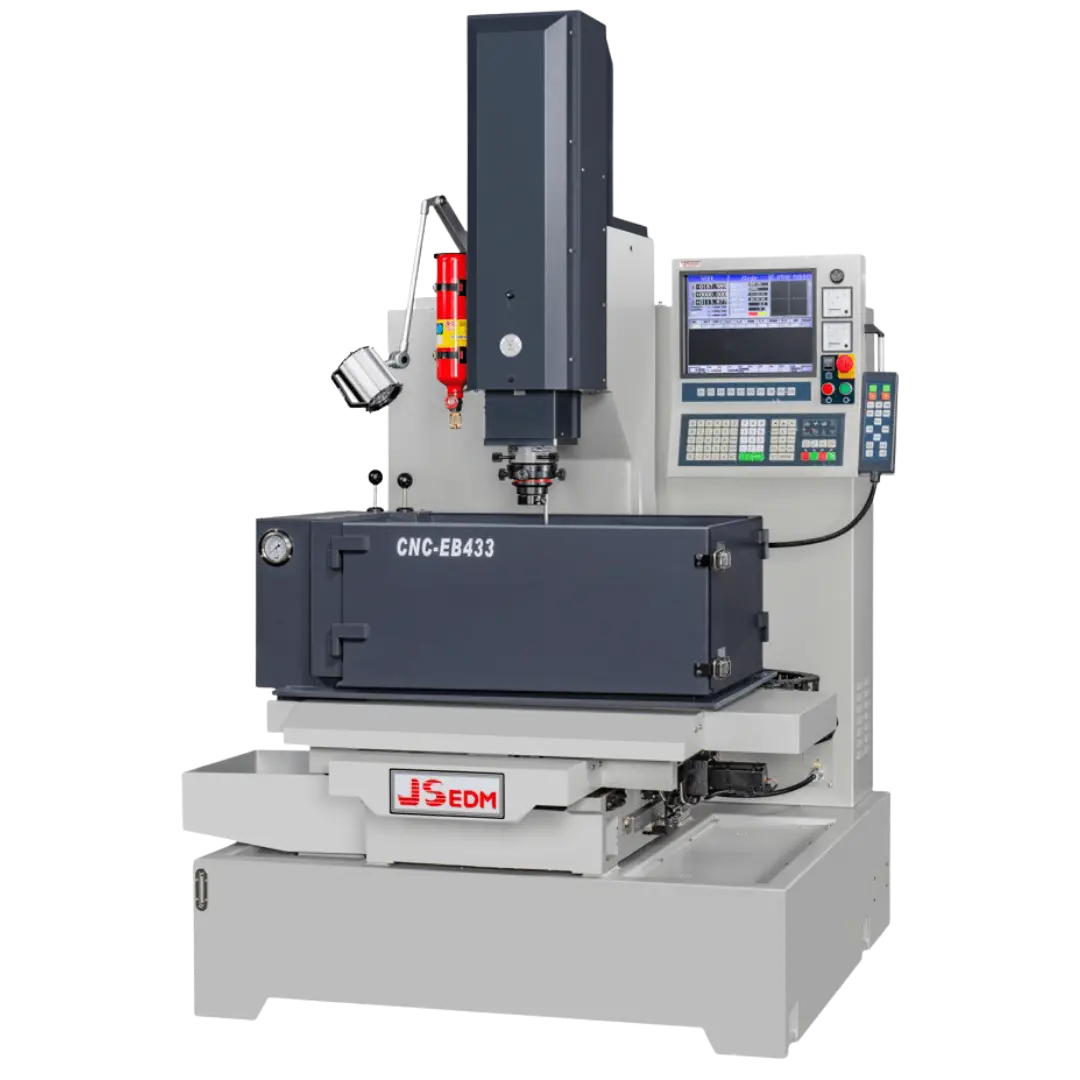

CNC EDM JS Series
JS EDM CNC-High-precision CNC control for accurate machining. Advanced servo system for smooth and stable operation. Reliable and efficient performance for continuous production. Low maintenance & long machine life. Superior surface finish with optimized EDM parameters. Provide precision, accuracy, and controlled machining for applications where conventional machining may not achieve the required profile or finish.
X, Y Travel
400 x 300 - 1000 X 600 mm
Work Table Size
600 x 350 - 1250 x 750 mm
Max Load on Worktable
500 - 4500 kg
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES
Review the CNC JS EDM Series core machining capacity, travel and machine dimensions.
| Parameter | Unit | CNC - EB433 | CNC - EB600L | CNC - EB5435L | CNC-EB1060L |
|---|---|---|---|---|---|
| Capacity of Work Tank | mm | 900 x 520 x 385 | 1100 x 600 x 400 | 1250 x 800 x 520 | 1900 x 1100 x 620 |
| Work Table Size | mm | 600 x 350 | 700 x 400 | 850 x 450 | 1250 x 750 |
| Longitudinal travel (X) | mm | 400 | 400 | 500 | 1000 |
| Cross travel (Y) | mm | 300 | 300 | 400 | 600 |
| Z axis travel | mm | 300 | 300 | 350 | 500 |
| Distance between Platen to table | mm | 310~610 | 270~570 | 420~770 | 450~950 |
| Max.electrode weight | Kg | 100 | 100 | 200 | 350 |
| Max. workpiece weight | Kg | 500 | 1000 | 2000 | 4500 |
| Fluid Tank capacity | L | 300 | 370 | 850 | 1600 |
| Machine Outside Dimension(WxDxH) | mm | 1700 x 1600 x 2350 | 1900 x 1750 x 2350 | 2700 x 2250 x2400 | 3600 x 3250 x 3200 |
| Machine Weight | Kg | 1750 | 2250 | 2700 | 5200 |
| Max. Machining Current | A | 60 / 90 | 60 / 90 | 60 / 90 | 90 / 120 |
| Max. power input | kva | 07 / 10 | 07 / 10 | 07 / 10 | 10 / 13 |
| Max. machining rate | mm3/min | 400 / 600 | 400 / 600 | 400 / 600 | 600 / 800 |
| Best surface/Ra | µm | 0.2 | 0.2 | 0.2 | 0.2 |
| Generator Weight | kg | - | 320 | 320 | 350 |
| Min. D.R.O resolution | mm | 1E-3 | 1E-3 | 1E-3 | 0.001 |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01
Sturdy & compact head stock for easy opearation with high precision.
02
Metric & British system display & program Setting.
03
1000 stations processing programs.
04
Automatically edge finding , homefinding, center or inner hole finding & apex finding.
05
Single or 3 axis lateral machining , round orbiting , square orbiting , vector machining.
06
Industrial IPC System, ensure the best stability in any machining Condition.
