Reusable Wire EDM
RW Series
A four-axis CNC wire EDM platform with automatic wire tension control and inbuilt auto-cut programming — advanced HF power for high-speed machining, a power recycle system that saves over 40% energy, and one-cut to multi-pass cutting capability across five worktable sizes.
X, Y Travel
350 x 450-800 x 1000 mm
Work Table Size
450 x 650 - 1000 x 1200 mm
Max Load on Worktable
300-1200 kg
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES
Compare the full RW7735L to RW7780L model range or review the machine’s core engineering highlights.

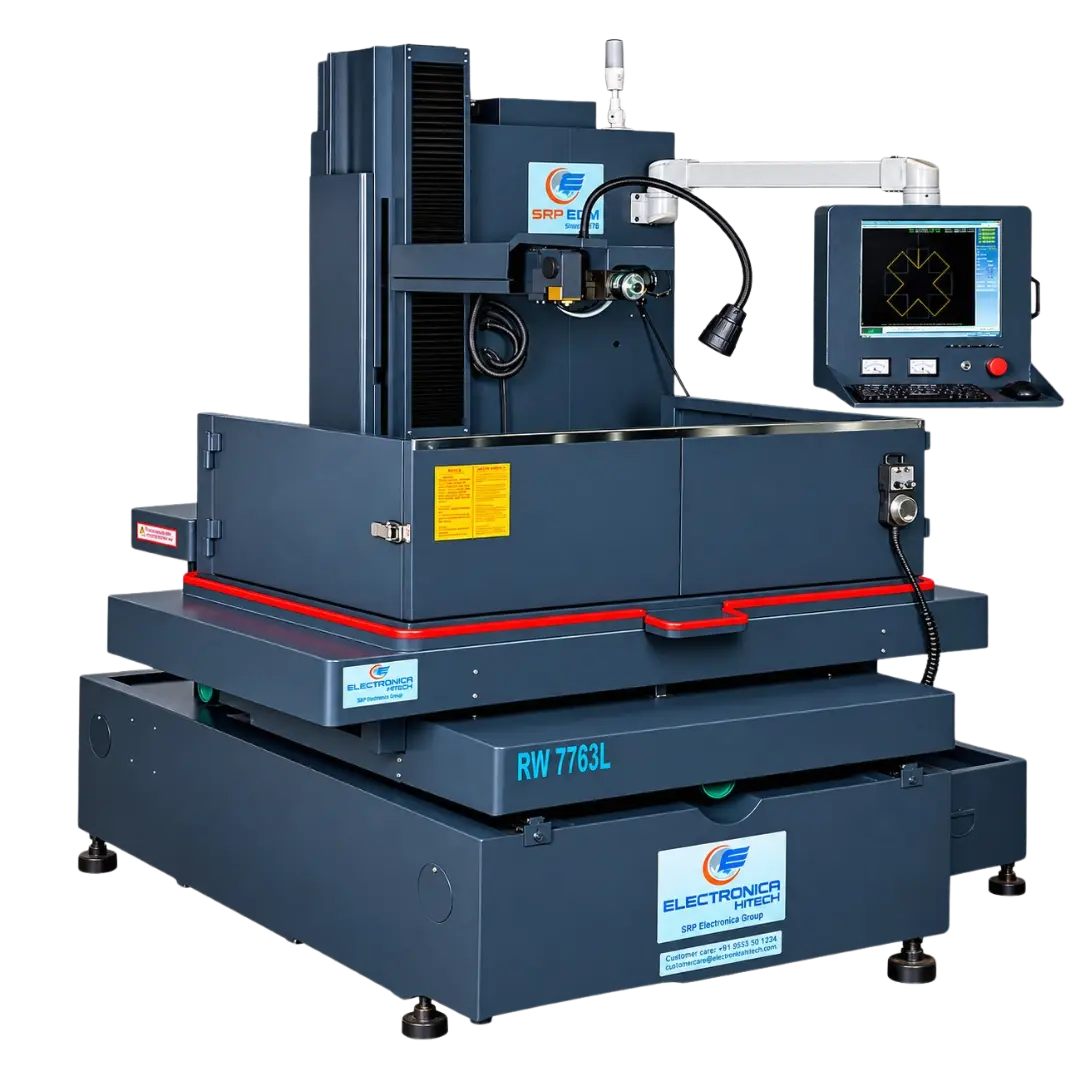

CNC Reusable Wirecut RW EDM
| Parameters/ Specification | Unit | RW7735L | RW7745L | RW7750L | RW7763L | RW7780L |
|---|---|---|---|---|---|---|
| Worktable travel (X x Y) | (mm) | 350 x 450 | 450x550 | 500 x 630 | 630 x 800 | 800 x 1000 |
| U x V travel UV | (mm) | 30 x 30 | 30 x 30 | 30 x 30 | 30 x 30 | 30 x 30 |
| Worktable dimension | (mm) | 450 x 650 | 485 x 765 | 630 x 940 | 800 x 1200 | 1000 x 1200 |
| Max.cut thickness | (mm) | 450 | 450 | 450 | 600 | 800 |
| Max cut angle / thickness | (mm) | ± 6°/80 | ± 6°/80 | ± 6°/80 | ± 6°/80 | ± 6°/80 |
| Best surface finish | (um) | Ra < 2.3 (one cut)1 | Ra < 2.3 (one cut)1 | Ra < 2.3 (one cut) | Ra < 2.3 (one cut) | Ra < 2.3 (one cut)1 |
| Ra < 1.6 (two cuts)2 | Ra < 1.6 (two cuts)2 | Ra < 1.6 (two cuts) | Ra < 1.6 (two cuts) | Ra < 1.6 (two cuts) | ||
| Ra < 1.2 (three cuts)3 | Ra < 1.2 (three cuts)3 | Ra < 1.2 (three cuts) | Ra < 1.2 (three cuts) | Ra < 1.2 (three cuts)3 | ||
| Max Cut Current | 9A | 9A | 9A | 9A | 9A | |
| Max Length of wire installed on drum | (m) | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 |
| Best accuracy | (mm) | ≤0.015 straight cutting | ≤0.015 straight cutting | ≤0.015 straight cutting | ≤0.015 straight cutting | ≤0.015 straight cutting |
| Capacity of Tank | 100L | 100L | 100L | 100L | 100L | |
| Max.load | (kg) | 300 | 400 | 500 | 1000 | 1200 |
| Weight | (kg) | 1000 | 1100 | 1800 | 2800 | 3200 |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01
Windows XP operating System
02
15 inch industrial monitor , friendly man- machine interface , simple & visual
03
Large memory capacity for machining programing files
04
High performance CPU with USB
05
Serial port and internal access for communication
06
Edit, copy, find, replace of files operation
07
X,Y, U, V four axes CNC Control
08
Taper cutting, Top & bottom different shape cutting
09
One cut and multi-pass cut capacity
10
Feed speed of wire is controlled by CNC system
11
Automatic wire tension adjustment
12
Inbuilt Auto Cut Programming software
13
Adopt advance HF power to realized high speed machining, Max cutting ~100 mm²/ min
14
Adopt power recycle system increase use rate of power source rapidly save more than 40% power
