Electronica Hitech CNC Wire Cut EDM
CNC Wire EDM
Job Master Series

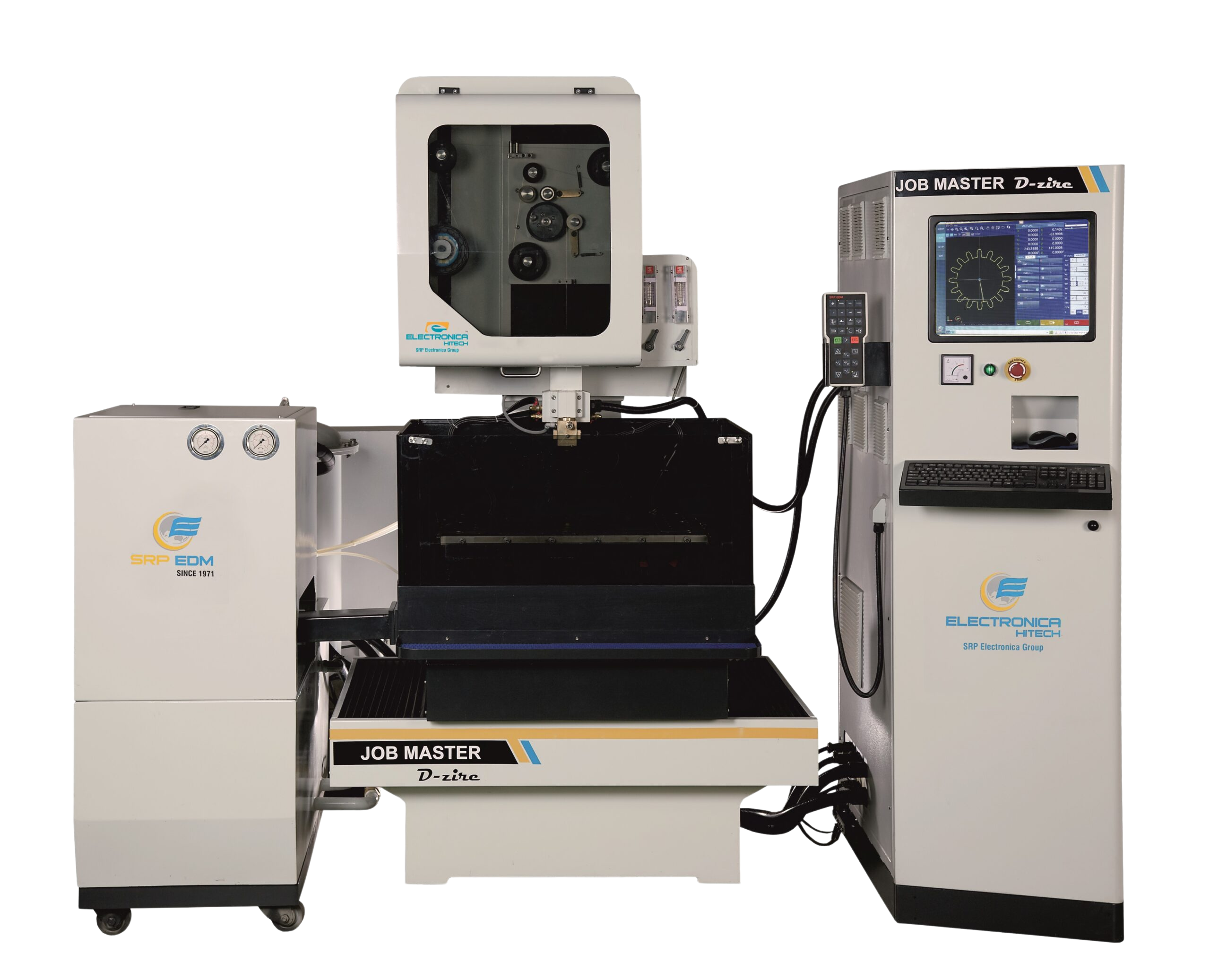

Engineered for reliable and efficient EDM performance, the Job Master Series is designed to meet the diverse requirements of job-work and precision manufacturing. -Job Master
X, Y Travel
400 x 300 mm
Work Table Size
635 x 475 mm
Max Load on Worktable
300 Kg
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES
Review the Job Master Series core machining capacity, travel and machine dimensions.
| Particulars | Unit | Job Master D-zire | Job Master D-lite |
|---|---|---|---|
| Table Size | mm | 635 x 475 | 635 x 475 |
| Work-tank Internal Dimensions | mm | 800 x 650 | 800 x 650 |
| Main Table Travel X,Y | mm | 400 x 300 | 400 x 300 |
| Auxiliary Table travel U,V | mm | 80 x 80 | 80 x 80 |
| Z-Axis Travel | mm | 250 | 250 |
| Maximum Taper Angle | Deg/mm | ± 30 / 50 | ± 30 / 50 |
| Job Admit | mm | 245 | 245 |
| Maximum Work-piece weight | Kg | 300 | 300 |
| Machining Type | Flush | Flush | |
| Jog Speed X,Y | mm/min | 1000 | 1000 |
| Jog Speed U,V | mm/min | 600 | 600 |
| Jog Speed Z | mm/min | 600 | 600 |
| Wire Threading | SAWT | SAWT | |
| Machine Foot Print | mm | 2350 x 2100 | 2350 x 2100 |
| Wire Diameter | mm | 0.15 ~ 0.3 | 0.15 ~ 0.3 |
| Wire Spool Size | DIN 125, DIN 160 | DIN 125, DIN 160 | |
| P3R, P5R | P3R, P5R | ||
| Cutting Speed* | mm2/min | 180 | 220 |
| Best Surface Finish* | µRa | 0.6 | 0.6 |
| Machine Overall Weight | kg | 3100 | 3100 |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01
Compact rigid T base structure.
02
Japanese AC Servo drive for all 5 axes.
03
Direct Coupling for AC servo motors.
04
C3 grade Japanese ball screws.
05
Table moving structure.
06
Compact footprint.
07
Front Loading Machine.
08
High Precision LM guide ways.
