CNC Wire EDM

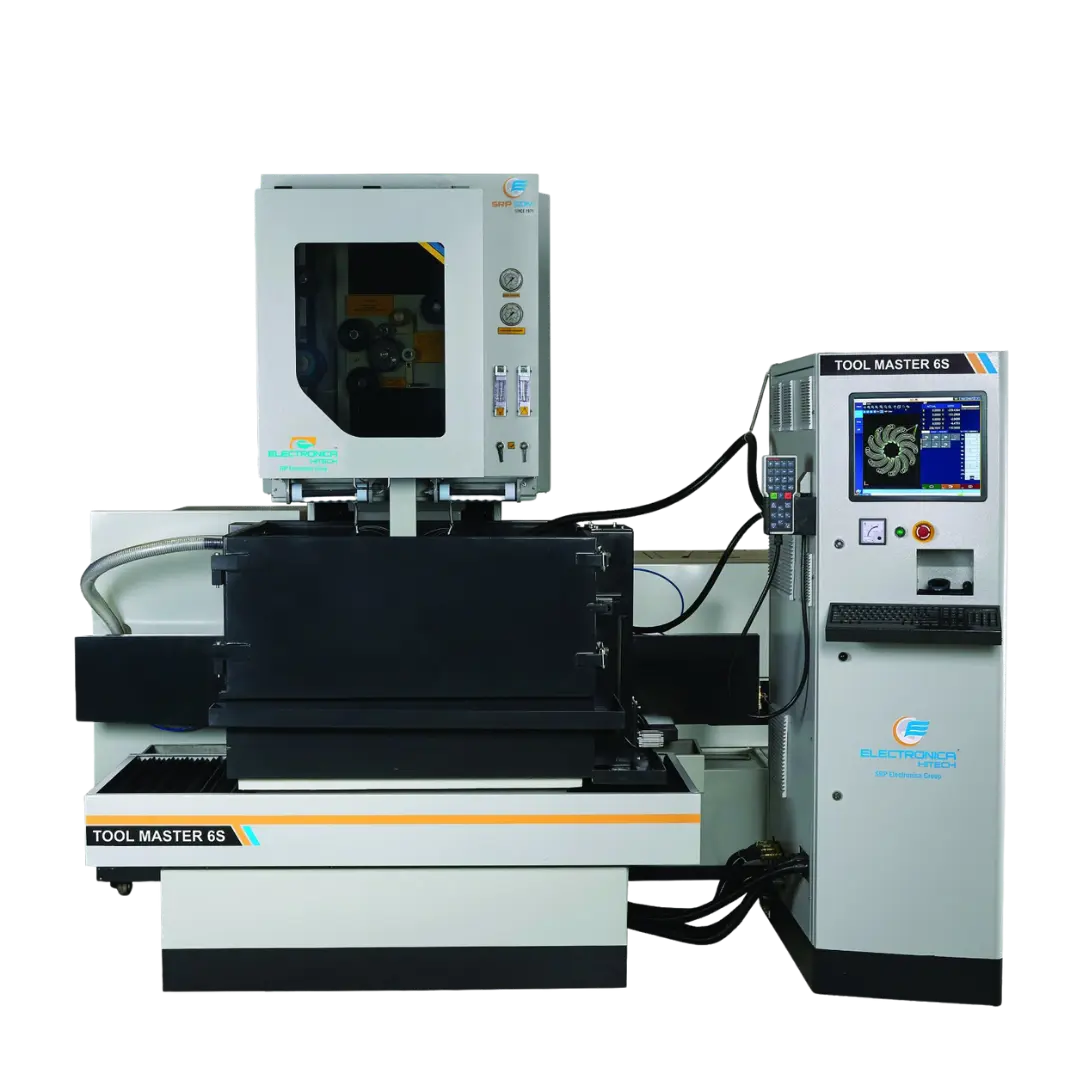

Tool Master Series
Designed for high-accuracy machining, the Tool Master Series delivers exceptional precision, consistency and reliability for demanding toolmaking and die-mould applications.
X, Y Travel
400 X 300 - 600 X 400 mm
Work Table Size
675 X 540 -875 X 595
Max Load on Worktable
500-1000 kg
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES
Compare the Tool Master 4F, 4S, 6F and 6S models or review the machine’s core engineering highlights.
Tool Master Series
| Machine Specification | Unit | Tool Master 4 F | Tools Master 4S | Tool Master 6F/6S |
|---|---|---|---|---|
| Table size | mm | 675 X 540 | 675 X 540 | 875 X 595 |
| Work-tank Internal Dimensions | mm | 850 X 750 | 850 X 750 | 1005 X 960 |
| Main Table Travel X, Y | mm | 400 X 300 | 400 X 300 | 600 X 400 |
| Auxilliary Table U,V | mm | 100 X 100 | 100 X 100 | 120 X 120 |
| Z-axis Travel | mm | 300 | 300 | 360 |
| Maximum Taper Angle | (Deg/mm) | ± 35/50 | ± 35/50 | ± 35/50 |
| Job Admit | mm | 295 | 295 (F) / 220 (S) | 350 / 350 (F) /250 (S) |
| Maximum Work-piece weight | kg | 500 | 500 | 1000 |
| Machining Type | Flush | Flush | Submerge | Flush/Submerge |
| Jog Speed X,Y | mm/min | 1000 | 1000 | 1000 |
| Jog Speed U,V | mm/min | 600 | 600 | 600 |
| Jog speed Z | mm/min | 600 | 600 | 600 |
| Wire Threading | SAWT | SAWT | SAWT | |
| Machine Foot Print | mm | 2300 X2800 | 2500 X 2600 | 2300 x2900 / 2800 x 3150 |
| Wire Diameter | mm | 0.1 ~0.3 | 0.1 ~0.3 | 0.1 ~0.3 |
| Wire Spool Size | DIN125, DIN160, | DIN125, DIN160, | DIN125, DIN160, | |
| P3R, P5R | P3R, P5R | P3R, P5R | ||
| Cutting speed* | mm2 /min | 220 | 220 | 220 |
| Best surface Finish* | µRa | 0.4 | 0.4 | 0.4 |
| Machine overall Weight | kg. | 4150 | 4410 | 4750 / 5400 |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01
Rugged T-base Structure
02
X axis on table & Y axis on column for better stability
03
High Precision LM guide ways
04
C 3 grade Japanese make ball screws for all axes
05
Granite isolation for worktable
06
Centralized lubrication system
07
Direct Coupled Japanese AC servo motors for all 5 axes
08
Front loading device
09
Hardened Work table
