Max. workpiece size
500 x 480 mm
Max. workpiece weight
200 kg
Max spindle speed
12000 rpm
Max. torque
118 N·m
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES

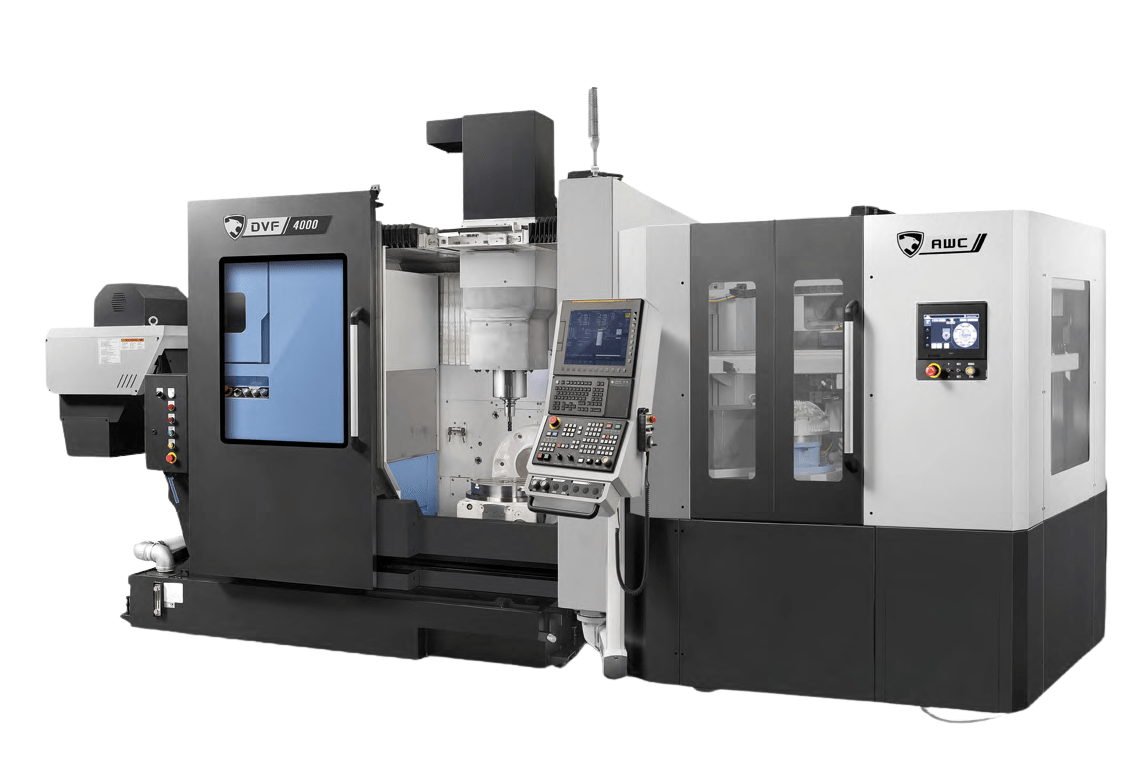

DN Solutions Vertical Machining Center DVF 4000 Series review the machine’s core engineering highlights.
| Specifications | Description | Unit | DVF 4000 |
|---|---|---|---|
| Travel | X-axis | mm (inch) | 620 (24.4) |
| Y-axis | mm (inch) | 440 (17.3) | |
| Z-axis | mm (inch) | 430 (16.9) | |
| Table | Table size | mm (inch) | Ø400 {Ø500 x 460} (Ø15.7 {Ø19.7 x 18.1}) |
| Max. workpiece size | mm (inch) | Ø500 X H480 (Ø19.7 X H18.9) | |
| Max. workpiece weight | kg (lb) | 200 (440.9) | |
| Spindle | Max spindle speed | r/min | 12000 {15000} |
| Max. torque | N·m (ft-lb) | 118 (87.1) | |
| Automatic Tool Changer (ATC) | Max length | mm (inch) | 300 (11.8) |
| Max weight | kg (lb) | 8 (17.6) | |
| Tool change (T-T-T) | sec | 1.3 (60Hz) | |
| Tool change time (C-T-C) | sec | 4.6 (60Hz) | |
| Machine size | Height | mm (inch) | 2760 (108.7) |
| Length x Width | mm (inch) | 2750 x 2205 (108.3 x 86.8) | |
| Weight | kg (lb) | 7500 (16534.4) |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01
12000 / 15000 r/min direct-coupled high speed spindle.
02
Ø400 mm rotary tilting table (opt : Ø500mm).
03
Max.workpiece weight 200kg.
04
RGC(Roller Gear Cam) driven type B/C-axis.
05
Compact footprint.
06
Easy operator’s access to machine.
07
Enhanced chip disposal capability(flushing, chip conveyor).
08
Integrated thermal compensation systems for spindle and structure.
09
Spindle cooling provided as standard.
10
B/ C-axis rotary encoder provided as standard.
