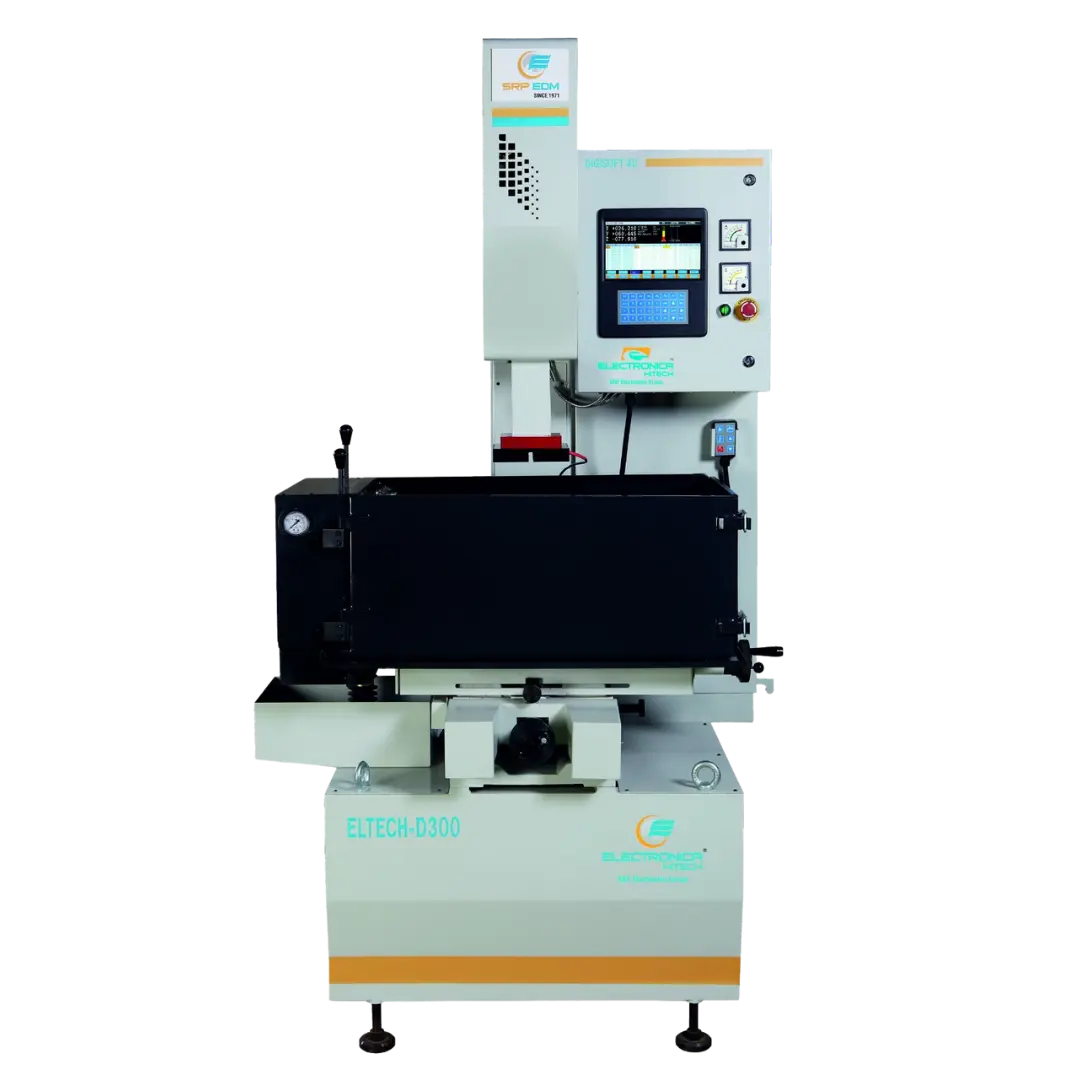

ELTECH D300/D400 SERIES
A compact ZNC die-sinking EDM range with an 18″ high-resolution wide-screen LCD and single-screen menu — ISO-Bipulse technology, LM guideways, a double-door tank and AC servo Z-axis, with the D400 offering a Windows-based operating system.
X, Y Travel
300×200 – 400×300 mm
Work Table Size
500×300 – 600×400 mm
Max Load on Worktable
300 – 500 kg
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES
Compare the D 300 ZNC, D 400 ZNC and D 400α ZNC models or review the machine’s core engineering highlights.
EDM -ELTECH D Series
| Parameter | Unit | ELTECH-D 300 ZNC | ELTECH-D 400 ZNC | ELTECH-D 400α ZNC |
|---|---|---|---|---|
| X, Y Travel Size | mm | 300 X200 | 400 X 300 | 400 X 300 |
| Work Table Size | mm | 500 X 300 | 600 X 400 | 600 X 400 |
| Z Axis Travel | mm | 250 | 250 | 250 |
| Back Slide | mm | NA | NA | NA |
| Max.Electrode Weight | Kg | 100 | 100 | 100 |
| Max Load on Worktable | Kg | 300 | 500 | 500 |
| Daylight | 515 | 510 | 510 | |
| Work Tank Internal Size | mm | 800 X 500 X 350 | 1000 X 600 X 450 | 1000 X 600 X 450 |
| Overall weight | Kg | 1250 | 2000 | 2000 |
| Overall Dimensions | mm | 1200 X1250 X 2270 | 1540 X 1470 X 2300 | 1540 X 1470 X 2300 |
| Dielectric capacity | Litre | 260 | 450 | 450 |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01
18″ high resolution wide screen LCD
02
Single Screen Menu
03
ISO- Bipulse technology
04
Micro Controller based anitrac control
05
LM Guideways( D300/D400)
06
Ball Screw for X, Y axes
07
Double Door Tank
08
AC Servo System for Z axis
09
10 Steps , 10 Positions, 100 Programs Strorage for ZNC
10
Linear Scale of 5µ resolution
11
Windows based operating system (D 400)
