Bending Force
1600 -30000 kN
Bending Length
4100 - 12000 mm
Thorat Depth
410 -1500 mm
Ram Stroke
215 -600 mm
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES

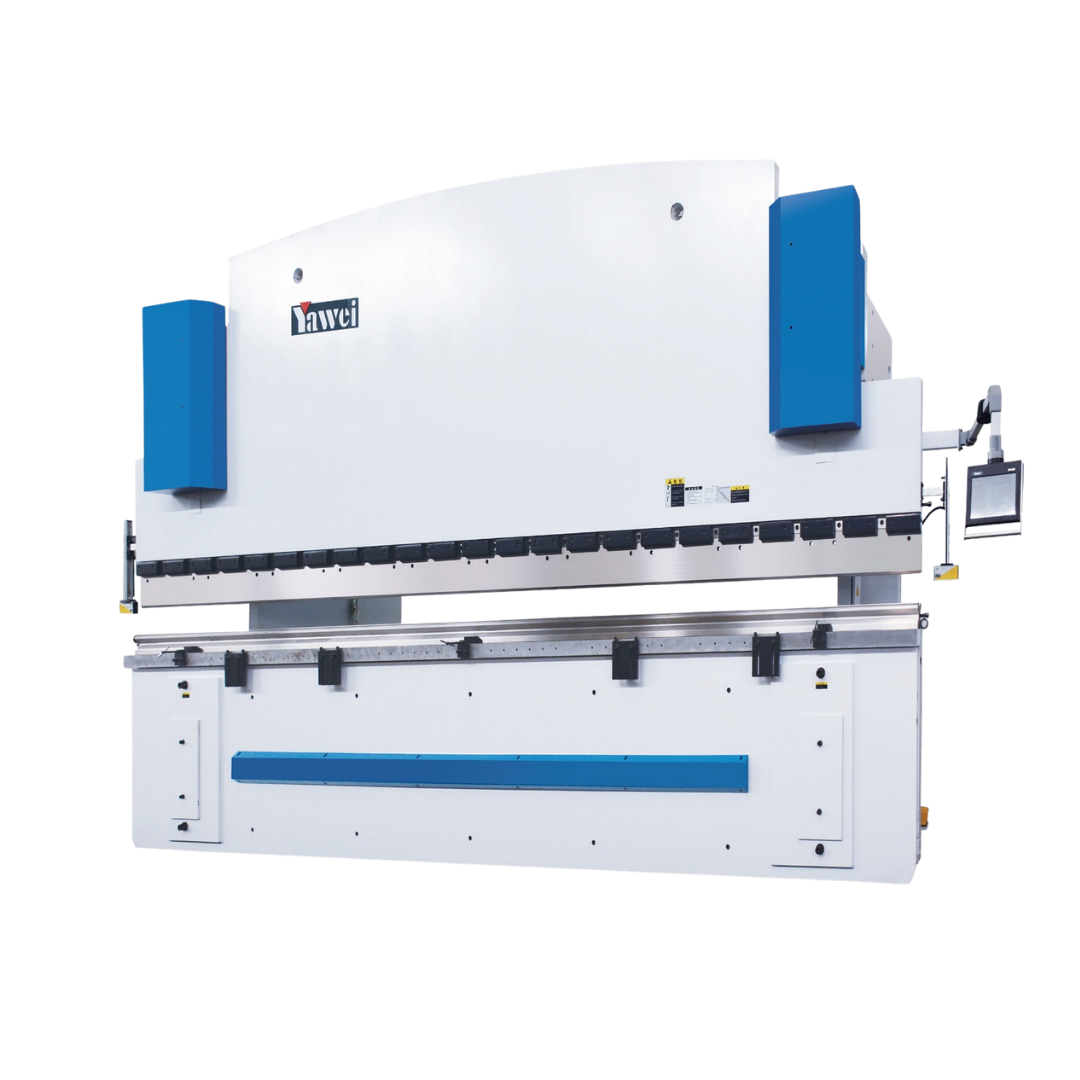

Heavy Duty Press Brake PBH (A) Series review the machine’s core engineering highlights.
| Specifications | Bending Force | Bending Length | Thorat Depth | Ram Stroke | Main Motor Power | Overall Dimension (L X W X H) | Weight |
|---|---|---|---|---|---|---|---|
| kN | mm | mm | mm | kW | mm | kg | |
| PBH(A)-160/5100 | 1600 | 5100 | 410 | 215 | 11 | 5400 x 1850 x 3350 | 20000/17200 |
| PBH(A)-220/5100 | 2200 | 5100 | 410 | 215 | 15 | 5400 x 1860 x 3380 | 23000/20000 |
| PBH(A)-220/6200 | 2200 | 6200 | 410 | 215 | 15 | 6500 x1850 x 3430 | 280000/23000 |
| PBH(A)-300/5100 | 3000 | 5100 | 410 | 265 | 22 | 5400 x2000 x3360 | 29000/25000 |
| PBH(A)-300/6200 | 3000 | 6200 | 410 | 265 | 22 | 6500 x 2000 x3610 | 33000/28500 |
| PBH(A)-400/4100 | 4000 | 4100 | 510 | 315 | 30 | 4400 x 2150 x 3480 | 27000/25000 |
| PBH(A)-400/5100 | 4000 | 5100 | 510 | 315 | 30 | 5400 x 2160 x 3880 | 35500/31000 |
| PBH(A)-400/6200 | 4000 | 6200 | 510 | 315 | 30 | 6500 x 2160 x 3910 | 43000/37000 |
| PBH(A)-500/4100 | 5000 | 4100 | 510 | 315 | 37 | 4400 x 2190 x 3700 | 33000/30000 |
| PBH(A)-500/5100 | 5000 | 5100 | 510 | 315 | 37 | 5400 x 2290 x 4200 | 43000/38000 |
| PBH(A)-500/6200 | 5000 | 6200 | 510 | 315 | 37 | 6500 x 2290 x 4500 | 53000/48000 |
| PBH(A)-500/8200 | 5000 | 8200 | 510 | 315 | 37 | 8500 x 2290 x 5400 | 71000/61000 |
| PBH(A)-630/4100 | 6300 | 4100 | 510 | 315 | 45 | 4400 x 2430 x 4200 | 38000/35000 |
| PBH(A)-630/5100 | 6300 | 5100 | 510 | 315 | 45 | 5400 x 2430 x 4200 | 52000/47000 |
| PBH(A)-630/6200 | 6300 | 6200 | 510 | 315 | 45 | 6500 x2430 x 4500 | 66000/57000 |
| PBH(A)-630/8200 | 6300 | 8200 | 510 | 315 | 45 | 8500 x 2430 x 4630 | 78000/67500 |
| PBH(A)-800/6200 | 8000 | 6200 | 610 | 410 | 75 | 6500 x2900 x 5000 | 89000/77000 |
| PBH(A)-800/8200 | 8000 | 8200 | 610 | 410 | 75 | 8500 x2900 x 5400 | 105000/93000 |
| PBH(A)-1000/6200 | 10000 | 6200 | 610 | 410 | 90 | 6500 x 2760 x 4800 | 108000/92000 |
| PBH(A)-1000/8200 | 10000 | 8200 | 610 | 410 | 90 | 8500 x 2760 x 5300 | 130000/112000 |
| PBH(A)-1200/6200 | 12000 | 6200 | 610 | 410 | 90 | 6500 x 2940 x 5000 | 110000/95000 |
| PBH(A)-1200/8200 | 12000 | 8200 | 610 | 410 | 90 | 8500 x 2940 x 5400 | 136000/116000 |
| PBH(A)-1200/12000 | 12000 | 12000 | 610 | 410 | 90 | 12200 x 3700 x 7900 | 230000/200000 |
| PBH(A)-1600/8200 | 16000 | 8200 | 610 | 410 | 2×55 | 8500 × 3300 × 6700 | |
| PBH(A)-1600/12000 | 16000 | 12000 | 1000 | 500 | 2×55 | 12200 × 4700 × 9900 | |
| PBH(A)-2000/12000 | 20000 | 12000 | 1250 | 600 | 2×75 | 12200 × 4700 × 9900 | |
| PBH(A)-2500/12000 | 25000 | 12000 | 1500 | 600 | 2×75 | 12200 × 5300 × 9900 | |
| PBH(A)-3000/12000 | 30000 | 12000 | 1500 | 600 | 2×90 | 12200 × 3740 × 8800 |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01
CNC Pressbrake featuring an advanced design with high speed, high accuracy and excellent rigidity.
02
Yawei machines are produced using high quality, world class steel plate and a large scale pentahedron machining center.
03
An Electro-hydraulic full loop servo system controlling the synchronization of the ram.
04
Dual gibbed ram structure with a self-lubrication system guarantees precise operation.
05
CNC Hydraulic crowning system with a 3 piece bed design and c-frame throat deformation compensation systems ensure precision bends.
06
Cylinders are attached to ram with spherical fl oating supports and the piston and rod is equieped with a unique guiding system to assist during unbalanced loading.
07
Backgauge components include: digital AC servo motors with precision ball screws and linear guide.
