Bending Force
350 -3000 kN
Bending Length
1250 - 4100 mm
Thorat Depth
300 - 410 mm
Ram Stroke
120 - 265 mm
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES
Heavy Duty Press Brake PBH Series review the machine’s core engineering highlights.
| Model | Bending Force | Bending Length | Thorat Depth | Ram Stroke | Main Motor Power | Oil Tank Volume | Overall Dimension (L X W X H) | Weight |
|---|---|---|---|---|---|---|---|---|
| - | kN | mm | mm | mm | kW | L | mm | kg |
| PBA-35/1250 | 350 | 1250 | 300 | 120 | 5 | 100 | 1930 x 1400 x2200 | 3000 |
| PBA-630/2050 | 630 | 2050 | 350 | 175 | 6 | 150 | 2700 x 1450 x2360 | 4000 |
| PBA-630/2550 | 630 | 2550 | 350 | 175 | 6 | 200 | 3200 x1450 x2360 | 5000 |
| PBA-110/3100 | 1100 | 3100 | 410 | 215 | 8.7 | 250 | 3665 x 1430 x2620 | 7000 |
| PBA-110/4100 | 1100 | 4100 | 410 | 215 | 8.7 | 300 | 4665 x 1430 x 2620 | 8500 |
| PBA-160/3100 | 1600 | 3100 | 410 | 215 | 10.8 | 350 | 3685 x 1500 x 2750 | 8600 |
| PBA-160/4100 | 1600 | 4100 | 410 | 215 | 10.8 | 400 | 4685 x1500 x 2810 | 10500 |
| PBA-220/3100 | 2200 | 3100 | 410 | 215 | 16.7 | 400 | 3705 x 1745 x 2830 | 10800 |
| PBA-220/4100 | 2200 | 4100 | 410 | 215 | 16.7 | 500 | 4705 x 1745 x 2930 | 12800 |
| PBA-300/3100 | 3000 | 3100 | 410 | 265 | 21.4 | 450 | 3725 x 1925 x 2980 | 13800 |
| PBA-300/4100 | 3000 | 4100 | 410 | 265 | 21.4 | 600 | 4725 x 1925 x 3080 | 15800 |
| PBH-80/2550 | 800 | 2550 | 350 | 175 | 9.8 | 230 | 3140 x 1540 x 2450 | 6500 |
| PBH-110/3100 | 1100 | 3100 | 410 | 215 | 12.5 | 300 | 3610 x 1550 x 2620 | 8800 |
| PBH-110/4100 | 1100 | 4100 | 410 | 215 | 12.5 | 360 | 4610 x 1550 x 2670 | 11000 |
| PBH-160/3100 | 1600 | 3100 | 410 | 215 | 18 | 380 | 3630 x 1600 x 2670 | 10300 |
| PBH-160/4100 | 1600 | 4100 | 410 | 215 | 18 | 430 | 4630 x 1600 x 2720 | 12500 |
| PBH-220/3100 | 2200 | 3100 | 410 | 215 | 24.4 | 400 | 3650 x 1850 x 2735 | 12800 |
| PBH-220/4100 | 2200 | 4100 | 410 | 215 | 24.4 | 500 | 4650 x 1850 x 2935 | 16000 |
| PBH-250/3100 | 2500 | 3100 | 410 | 215 | 24.4 | 400 | 3650 x 1850 x 2735 | 13000 |
| PBH-250/4100 | 2500 | 4100 | 410 | 215 | 24.4 | 500 | 4650 x 1850 x 2935 | 16200 |
| PBH-300/3100 | 3000 | 3100 | 410 | 265 | 22 | 450 | 3310 x 1890 x 2980 | 16000 |
| PBH-300/4100 | 3000 | 4100 | 410 | 265 | 22 | 600 | 4310 x 1890 x3080 | 19000 |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01

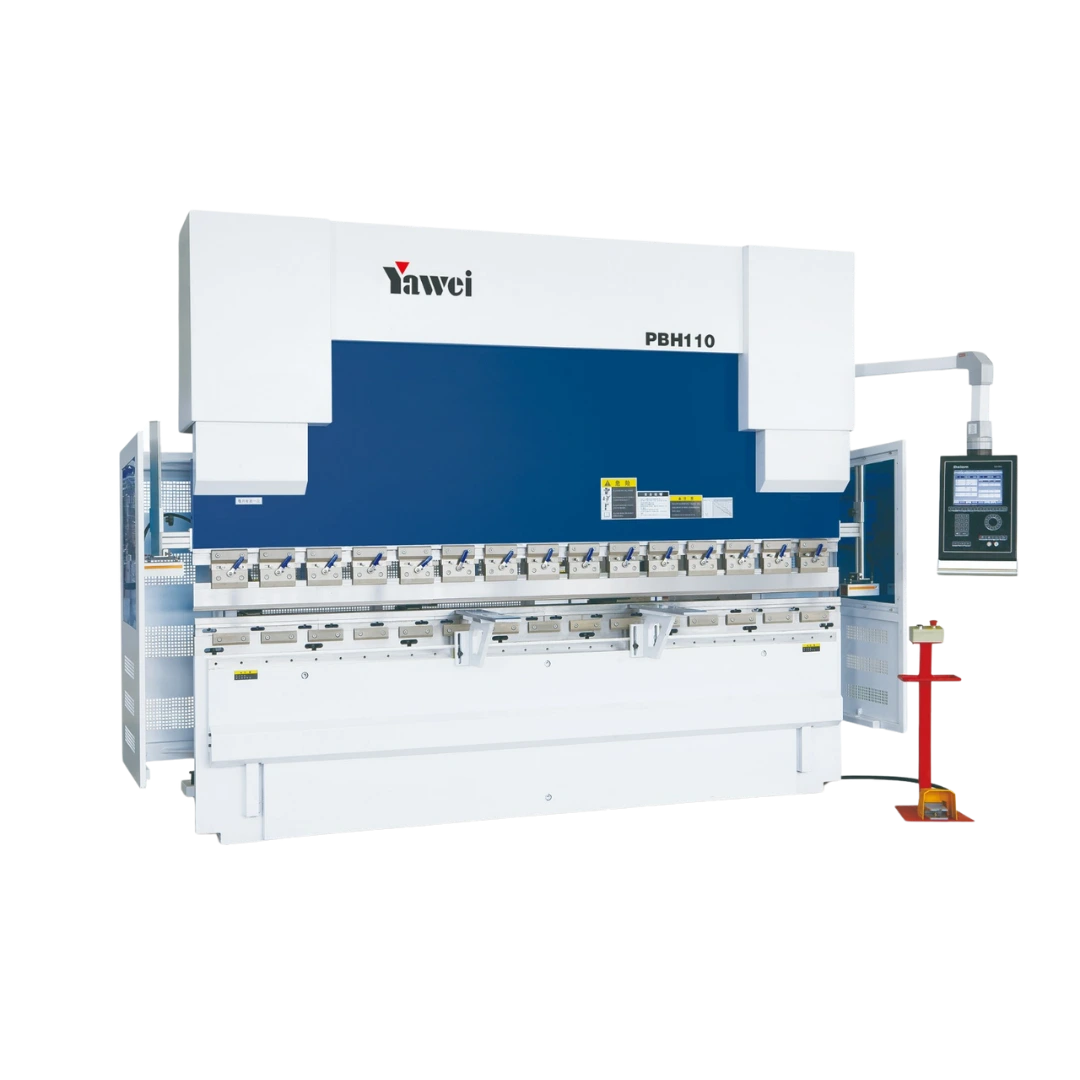

CNC Pressbrake featuring an advanced design with high speed, high accuracy and excellent rigidity.
02
Yawei machines are produced using high quality, world class steel plate and a large scale pentahedron machining center.
03
An Electro-hydraulic full loop servo system controlling the synchronization of the ram.
04
Dual gibbed ram structure with a self-lubrication system guarantees precise operation.
05
CNC Hydraulic crowning system with a 3 piece bed design and c-frame throat deformation compensation systems ensure precision bends.
06
Cylinders are attached to ram with spherical fl oating supports and the piston and rod is equieped with a unique guiding system to assist during unbalanced loading.
07
Backgauge components include: digital AC servo motors with precision ball screws and linear guide.
