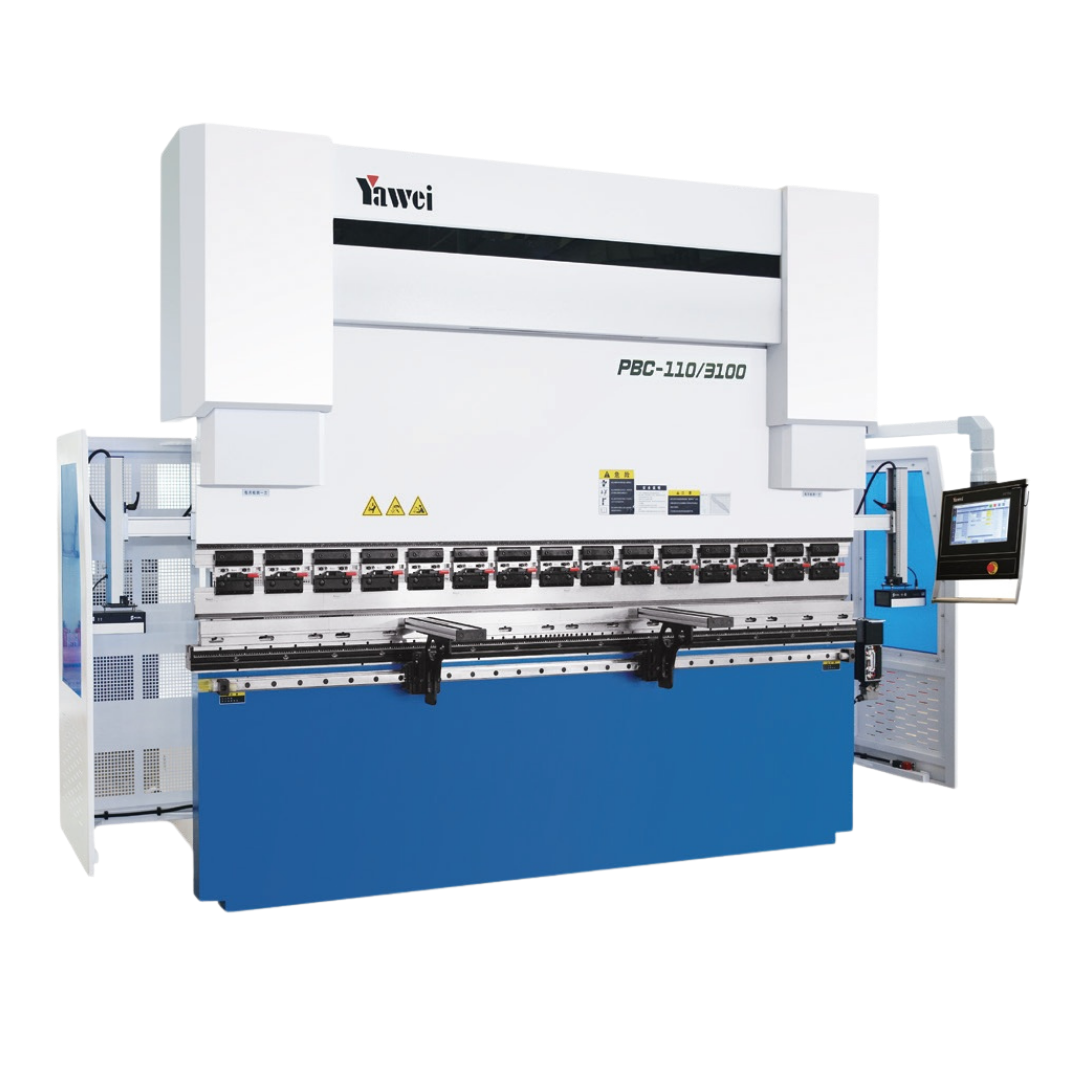

Yawei High Performance CNC Press Brake PBC Series

High Performance CNC Press Brake

300 - 2200 kN

1050 -4100 mm

90 - 410 mm

120 - 215 mm

Yawei High Performance CNC Press Brake PBC Series review the machine’s core engineering highlights.

Specifications	Bending Force	Bending Length	Thorat Depth	Ram Stroke	Main Motor Power	Overall Dimension (L X W X H)	Weight
	kN	mm	mm	mm	kW	mm	kg
PBC-30/1050	300	1050	90	120	3	1790 x 1235 x 2385	3000
PBC-50/2050	500	2050	350	175	6.2	2550 x 1450 x2485	4500
PBC-80/2550	800	2550	350	175	8.5	3140 x 1540 x 2485	6000
PBC-110/3100	1100	3100	410	215	13	3610 x 1550 x 2785	8500
PBC-110/4100	1100	4100	410	215	13	4610 x 1550 x 2835	9200
PBC-160/3100	1600	3100	410	215	18	3630 x 1600 x 2835	10000
PBC-160/4100	1600	4100	410	215	18	4630 x 1600 x 2875	11900
PBC-220/3100	2200	3100	410	215	22	3650 x 1850 x 2845	12300
PBC-220/4100	2200	4100	410	215	22	4650 x 1850 x 2945	14000
PBM-110/3100	1100	3100	410	265	5.5×2	3610 x 1550 x 2935	9000
PBM-110/4100	1100	4100	410	265	5.5×2	4610 x 1550 x 2985	9700
PBM-160/3100	1600	3100	410	265	7.5×2	3630 x 1600 x 2985	10500
PBM-160/4100	1600	4100	410	265	7.5×2	4630 x 1600 x 3025	12400
PBM-220/3100	2200	3100	410	265	15×2	3650 x 1850 x 2995	13000
PBM-220/4100	2200	4100	410	265	15×2	4650 x 1850 x 3095	14700
PBG-110/3100	1100	3100	410	215	2×7.9	3670 x 1430 x 2620	7000
PBG-160/3100	1600	3100	410	215	2×7.9	3690 x 1500 x 2750	8600
PBG-160/4100	1600	4100	410	215	2×7.9	4690 x 1500 x 2820	10500
PBG-220/3100	2200	3100	410	215	2×11	3710 x 1750 x 2830	10800
PBG-220/4100	2200	4100	410	215	2×11	4710 x 1750 x 2930	12800
PBG-110/4100 Curtain wall	1100	4100	550	215	2×7.9	4670 x 1700 x 2780	8800
PBG-110/4500 Curtain wall	1100	4500	550	215	2×7.9	5070 x 1700 x 2870	9500
PBE-25/850	250	850	250	190	6	1740 x 1555 x 2420	3000
PBE-35/1250	350	1250	250	150	6×2	1940 x 1500 x 2380	3000
PBE-50/2050	500	2050	-	190	6×2	3100 x 1720 x 2300	6000

*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.

All new outlook design , friendly human machine interface.

Worktable mechanical crowning compensation, higher precision, more stable.

Optimized parameters and configurations, more functions while easier to operate.

High frequency response valve control technology, high dynamic response and high precision.

Load sensitive adjustment, more energy saving and more stable.

Parameter	Unit	CNC - EB433	CNC - EB600L	CNC - EB5435L	CNC-EB1060L
Capacity of Work Tank	mm	900 x 520 x 385	1100 x 600 x 400	1250 x 800 x 520	1900 x 1100 x 620
Work Table Size	mm	600 x 350	700 x 400	850 x 450	1250 x 750
Longitudinal travel (X)	mm	400	400	500	1000
Cross travel (Y)	mm	300	300	400	600
Z axis travel	mm	300	300	350	500
Distance between Platen to table	mm	310~610	270~570	420~770	450~950
Max.electrode weight	Kg	100	100	200	350
Max. workpiece weight	Kg	500	1000	2000	4500
Fluid Tank capacity	L	300	370	850	1600
Machine Outside Dimension(WxDxH)	mm	1700 x 1600 x 2350	1900 x 1750 x 2350	2700 x 2250 x2400	3600 x 3250 x 3200
Machine Weight	Kg	1750	2250	2700	5200
Max. Machining Current	A	60 / 90	60 / 90	60 / 90	90 / 120
Max. power input	kva	07 / 10	07 / 10	07 / 10	10 / 13
Max. machining rate	mm3/min	400 / 600	400 / 600	400 / 600	600 / 800
Min. Electrode wear ratio		2.1	2.3	2.5	22.2
Best surface/Ra	µm	0.2	0.2	0.2	0.2
Generator Weight	kg	-	320	320	350
Min. D.R.O resolution	mm	1E-3	1E-3	1E-3	0.001
