Centre distance of oil cylinder
4500 - 6000 mm
Thorat Depth
1000 - 1600 mm
Ram Stroke
315- 410
Max.die opening
280- 320
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES

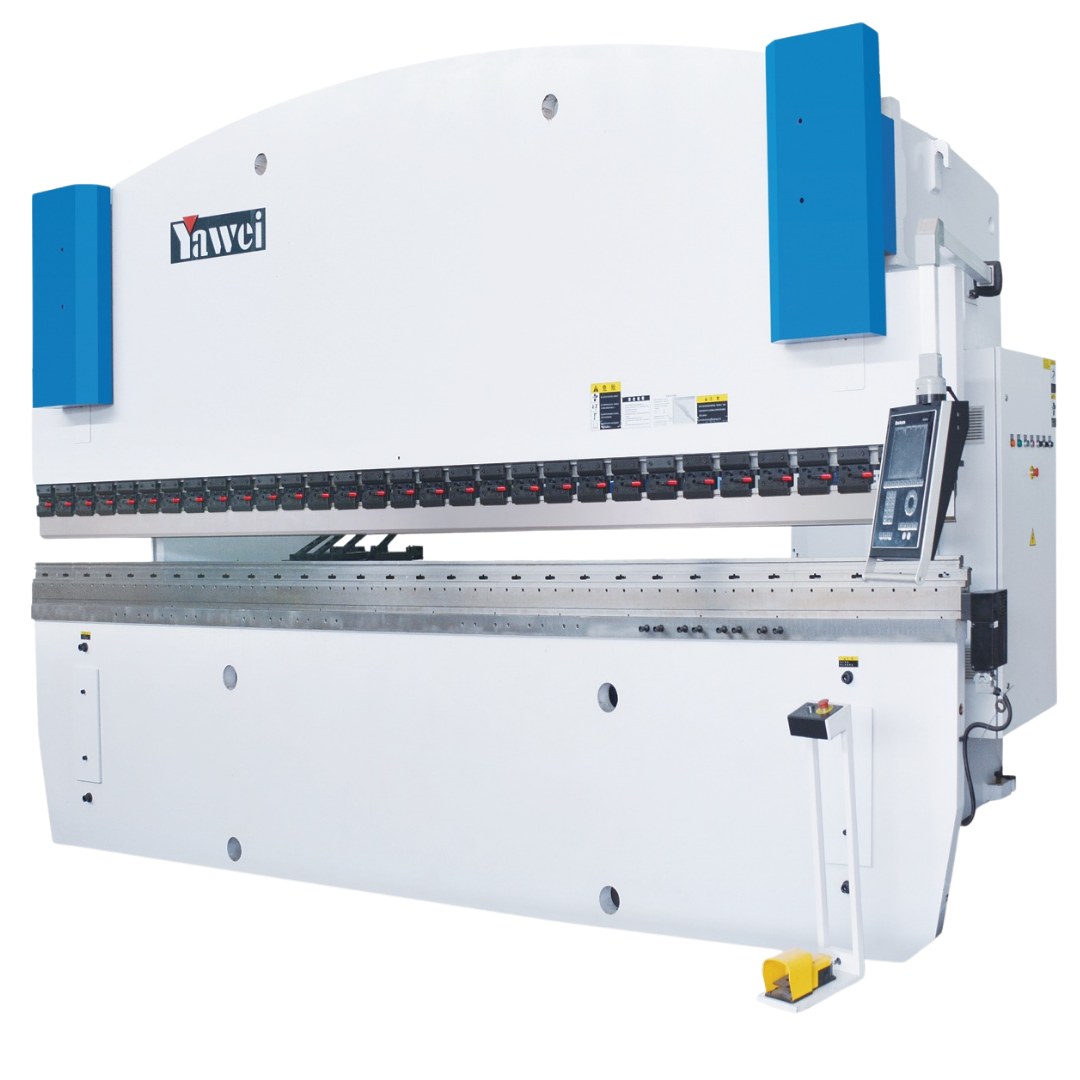

Tandem CNC Press Brake-2 PBA Series review the machine’s core engineering highlights.
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
| Models | Centre distance of oil cylinder | Thorat Depth | Ram Stroke | Max.die opening | Worktable width | Max.bending thickness x width |
|---|---|---|---|---|---|---|
| 2-PBA -X / X | mm | mm | mm | mm | mm | mm x dm |
| 500/6000 | 4500 | 1000 | 315 | 280 | 500 | 19 x 100 |
| 500/7000 | 5200 | 1000 | 315 | 280 | 500 | 17 x 120 |
| 630/6000 | 4500 | 1100 | 315 | 280 | 500 | 23 x 100 |
| 630/7000 | 5200 | 1100 | 315 | 280 | 500 | 21 x 120 |
| 800/6000 | 4500 | 1100 | 410 | 280 | 500 | 26 x 100 |
| 800/7000 | 5200 | 1100 | 410 | 280 | 500 | 24 x 120 |
| 800/8000 | 6000 | 1100 | 410 | 280 | 500 | 22 x 140 |
| 1000/7000 | 5200 | 1600 | 410 | 320 | 600 | 28 x 120 |
| 1000/8000 | 6000 | 1600 | 410 | 320 | 600 | 26 x 140 |
| 1200/7000 | 5200 | 1600 | 410 | 320 | 600 | 30 x120 |
| 1200/8000 | 6000 | 1600 | 410 | 320 | 600 | 28 x 140 |
| 1600/7000 | 4500 | 1600 | 410 | 320 | 600 | 38 x 120 |
| 1600/8000 | 5200 | 1600 | 410 | 320 | 600 | 35 x 140 |
| 2000/8000 | 5200 | 1600 | 410 | 320 | 600 | 38 x 140 |
01
CNC Pressbrake featuring an advanced design with high speed , high accuracy & excellent rigidity.
02
Single Machine upto 50,000 KN.
03
Customized Parameter design options used for processing lamp posts and large work pieces.
04
Tandem functions for use on 2 or 3 machines.
05
Standard 3 piece bed design with intigrated hydraulic bed crowing, easy operation, stable and reliable.
