Normal pressure
294 kn
Max.processing sheet size
1250×5000 - 2000×5000
Max.punch diameter
ø88.9 mm
Punch accuracy
±0.1 mm
PRODUCT DATA
TECHNICAL SPECIFICATIONS & FEATURES

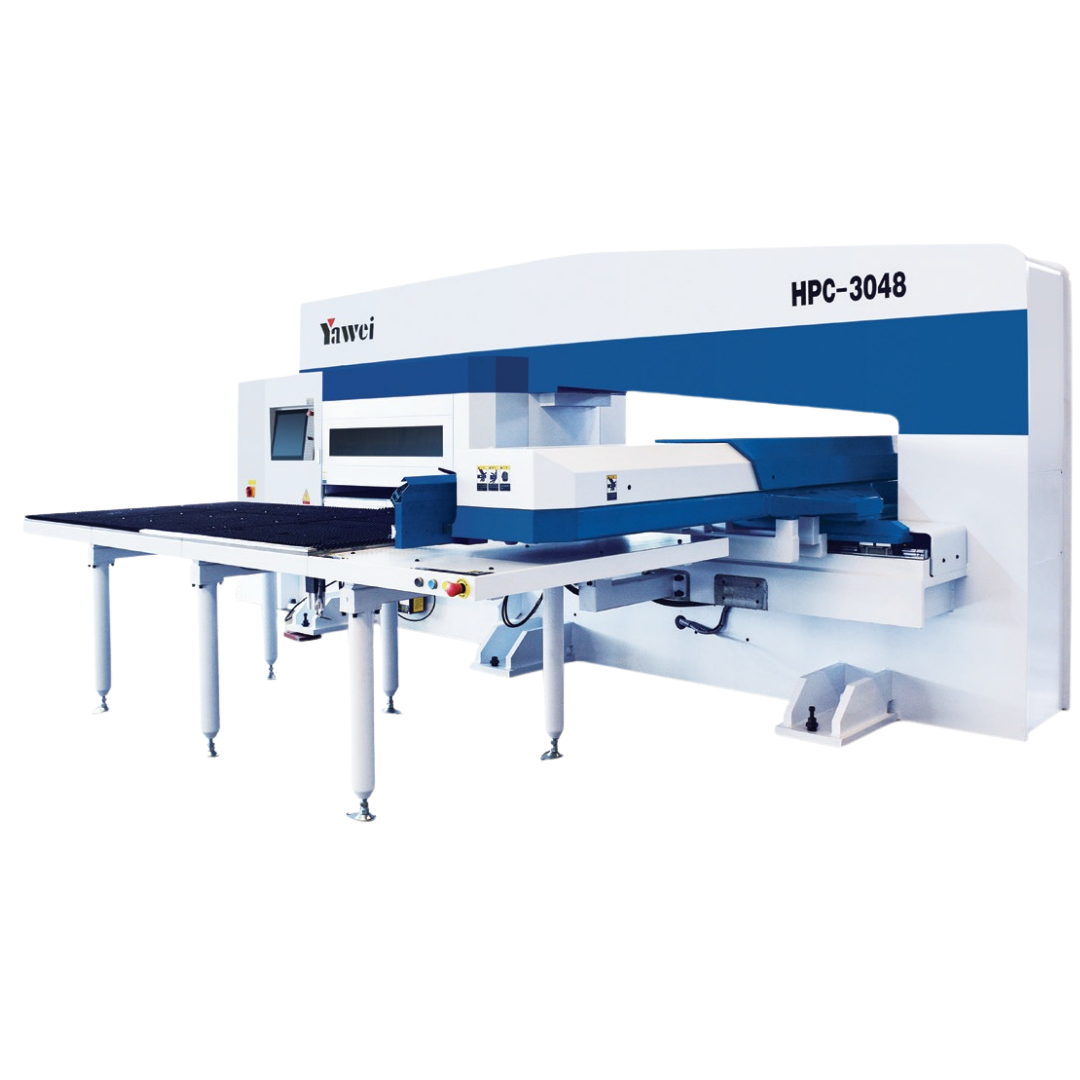

Yawei Turret Punch Press HPC Series review the machine’s core engineering highlights.
| Specifications | Unit | HPC-3044 | HPC-3048 | HPC-3058 | HPC-3078 |
|---|---|---|---|---|---|
| Normal pressure | kn | 294 | 294 | 294 | 294 |
| Max.processing sheet size | mm | 1250×2500 | 1250×5000 | 1500×5000 | 2000×5000 |
| Max.processing sheet thickness Carbon steel | mm | 6.35 | 6.35 | 6.35 | 6.35 |
| Max.processing sheet thickness Stainless steel | mm | 4 | 4 | 4 | 4 |
| Max.punch diameter | mm | ø88.9 | ø88.9 | ø88.9 | ø88.9 |
| Standard tool station | 38 | 38 | 38 | 38 | |
| Punch accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Ram stroke rates | cpm | 2000 | 2000 | 2000 | 2000 |
| Punch frequency | cpm | 700 | 700 | 700 | 700 |
| Punch frequency | cpm | 380 | 380 | 380 | 380 |
| Maximum speed of the plate movement | m/min | 102 | 102 | 102 | 102 |
| Turret speed | rpm | 30 | 30 | 30 | 30 |
| Total power consumption | kW | 6.1 | 6.1 | 6.1 | 6.1 |
| Air resource | Mpa | 0.6 | 0.6 | 0.6 | 0.6 |
| Overall dimension(mm) | L | 5530 | 5530 | 6030 | 7030 |
| W | 2300 | 5000 | 5000 | 5000 | |
| H | 2260 | 2260 | 2260 | 2260 | |
| Weight | kg | 14000 | 16000 | 19000 | 24500 |
*The specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
01
Main axis are controlled by servo punching system, stable
and reliable.
02
Full touch man-machine interface, powerful CNC system.
03
Constant meshing rotary station from patented technology,
gains higher repeat precision.
04
New industrial design, more pleasing.
05
Highly efficient precision rolling forming.
06
Energy saving, low energy consumption, low noise.
